Product Overview

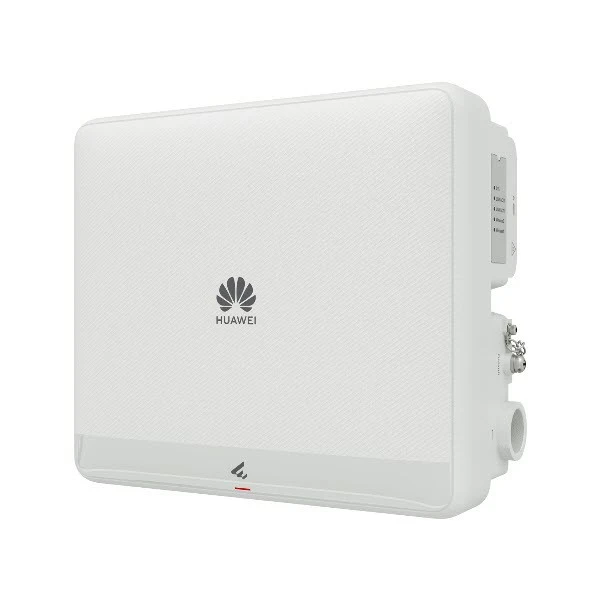

Huawei eKitEngine AP772E is an outdoor access point (AP) that complies with Wi-Fi 7 (802.11be) and provides a
maximum of six spatial streams. The AP leverages Wi-Fi 7 innovations to significantly improve users' wireless
experience. It stands out with excellent outdoor coverage performance, IP68 waterproof and dustproof ratings,
and strong surge protection capability. These strengths make the AP ideal for coverage scenarios such as
highdensity stadiums, squares, pedestrian streets, and amusement parks.
Product Highlights
The AP is equipped with built-in directional antennas and can provide wireless services through dual radios:
2.4 GHz (2x2 MIMO) + 5 GHz (4x4 MIMO).
The Ethernet ports of the AP support 6 kA surge protection. The AP supports IP68 waterproof and dustproof
ratings, and an extended operating temperature range of –40°C to +70°C (–40°F to +158°F), meeting
industrial-grade requirements.
It can work in Fit, Fat, or cloud mode.
