Product Overview

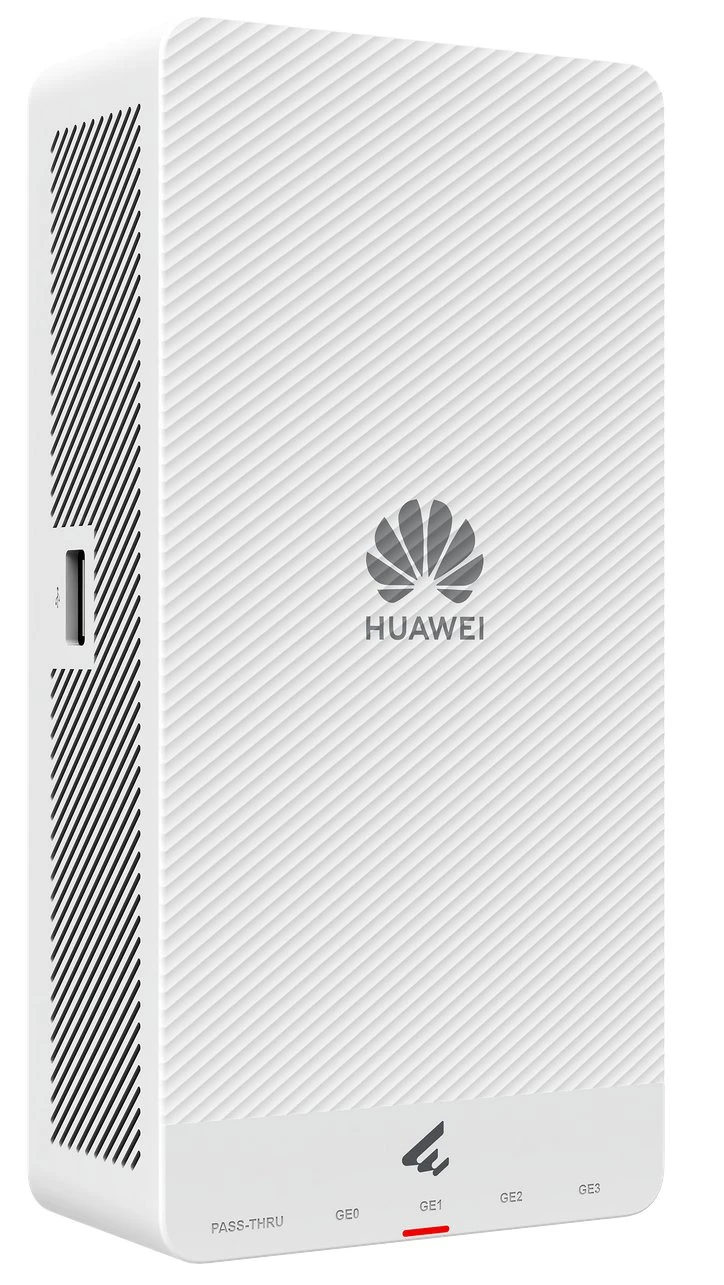

Huawei eKitEngine AP271E is an indoor slim wall plate access point (AP) that complies with the latest Wi-Fi 7
(802.11be) standard. It supports new Wi-Fi 7 technologies, such as multi-link operation (MLO) for link
aggregation, multi-user multiple-input multiple-output (MU-MIMO), Wi-Fi 7 160 MHz channel width, and 4096-
quadrature amplitude modulation (QAM).
This AP provides access rates of up to 688 Mbps on the 2.4 GHz (2x2 MIMO) frequency band, and 2882 Mbps on
the 5 GHz (2x2 MIMO) frequency band, totaling 3570 Mbps for the entire device. This superfast wireless speed
eliminates wireless performance bottleneck and greatly improves user experience on wireless networks.

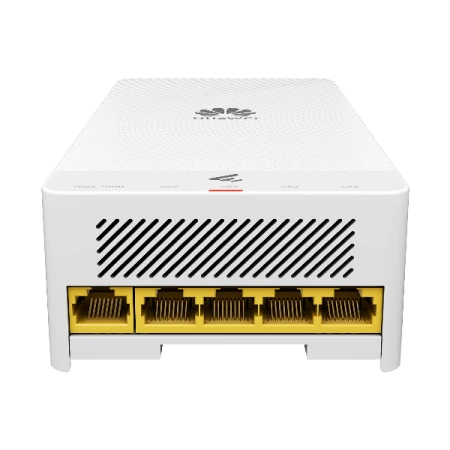

eKitEngine AP271E provides one 2.5GE uplink port, four GE downlink ports, and a pair of pass-through ports. This
compact AP can be easily installed on the wall, ceiling, or junction box to meet various connection needs. These
features make eKitEngine AP271E ideal for indoor coverage scenarios such as budget hotels, hospitals,
commercial stores, and schools.
eKitEngine AP271E can be locally managed using the S380 EasyWeb or wireless access controller (WAC) or
remotely managed through the HUAWEI eKit App and SME Network Center (SNC). In this way, network projects
can be handed over to and managed by customers themselves or managed jointly by customers and
subcontractors, simplifying network operations and maintenance (O&M)
