Product Overview

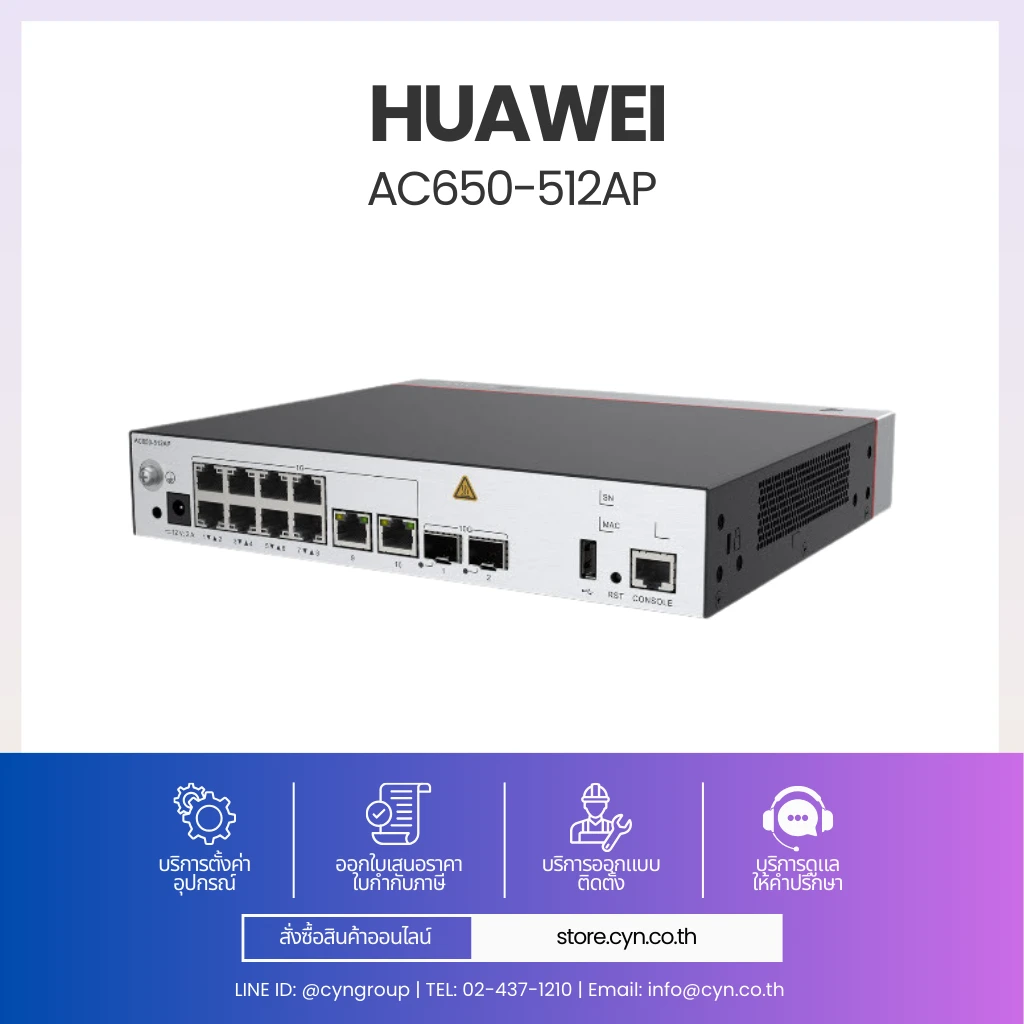

The eKitEngine AC650-512AP is a small-capacity box wireless access controller (AC) for small and medium enterprises. It
can manage up to 512 access points (APs) and integrates the GE Ethernet switch function, achieving integrated access for
wired and wireless users. The WLAN AC features high scalability and offers users considerable flexibility in configuring the
number of managed APs. When used with Huawei's full series 802.11ax, 802.11ac,802.11n and 802.11be APs, the
eKitEngine AC650-512AP can be used to construct small and medium campus networks, enterprise office networks, wireless
Metropolitan Area Networks (MANs), and hotspot coverage networks
Product Features
Large-capacity and high-performance design
The eKitEngine AC650-512AP can manage up to 512 APs, meeting requirements of small and medium campuses.
Provides 2 x 10GE optical interfaces and 10 x GE electrical interfaces, supporting up to 10 Gbit/s forwarding
performance.
SmartRadio for air interface optimization
Load balancing during smart roaming: The load balancing algorithm can work during smart roaming for load
balancing detection among APs on the network after STA roaming to adjust the STA load on each AP, improving network
stability.
Intelligent DFA technology: The dynamic frequency assignment (DFA) algorithm is used to automatically detect
adjacent-channel and co-channel interference, and identify any 2.4 GHz redundant radio. Through automatic inter-AP
negotiation, the redundant radio is automatically switched to another mode (dual-5G AP models support 2.4G-to-5G
switchover) or is disabled to reduce 2.4 GHz co-channel interference and increase the system capacity.
Intelligent conflict optimization technology: The dynamic enhanced distributed channel access (EDCA) and airtime
scheduling algorithms are used to schedule the channel occupation time and service priority of each user. This ensures that
each user is assigned relatively equal time for using channel resources and user services are scheduled in an orderly manner,
improving service processing efficiency and user experience.
Various roles
The eKitEngine AC650-512AP has a built-in Portal/AAA server and can provide Portal/802.1X authentication for users,
reducing customer investment.
Flexible networking
The WLAN AC can be deployed in inline, bypass, bridge, and Mesh network modes, and supports both centralized and
local forwarding.
The WLAN AC and APs can be connected across a Layer 2 or Layer 3 network. In addition, NAT can be deployed when
APs are deployed on the private network and the WLAN AC is deployed on the public network.
The WLAN AC is compatible with Huawei full-series 802.11n, 802.11ac, 802.11ax and 802.11be APs and supports
hybrid networking of 802.11n, 802.11ac, 802.11ax and 802.11be APs for simple scalability.
Built-in application identification server
Supports Layer 4 to Layer 7 application identification and can identify over 6000 applications, including common office
applications and P2P download applications, such as Lync, FaceTime, YouTube, and Facebook.
Supports application-based policy control technologies, including traffic blocking, traffic limit, and priority adjustment
policies.
Supports automatic application expansion in the application signature database.
Comprehensive reliability design
Supports AC 1+1 HSB, and N+1 backup, ensuring uninterrupted services
