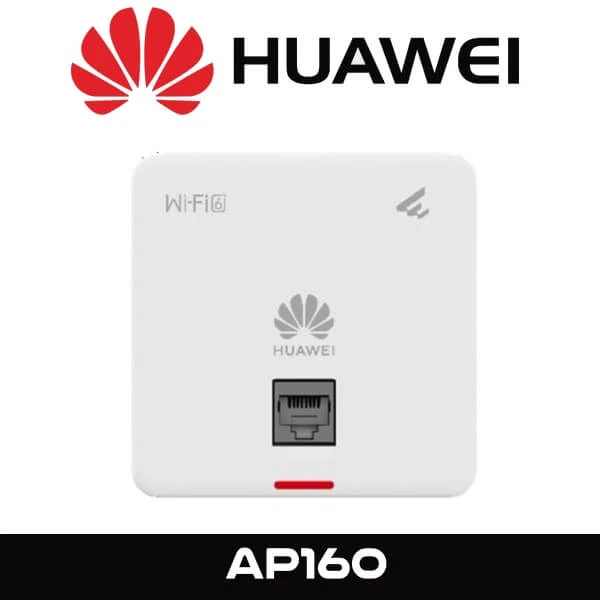

Huawei eKitEngine AP160 is a Wi-Fi 6 (802.11ax) wall plate 86x86 access point (AP) with an 8 mm ultra-thin panel. It provides services
simultaneously on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands, achieving a maximum device rate of 1.775 Gbps. This
AP features high bandwidth, high concurrency, and compact size, facilitating flexible deployment and saving customer investment. It is ideal
for indoor coverage scenarios such as enterprise workplaces, commercial real estates, and budget chain hotels
Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2), providing a maximum rate of 575 Mbps and 1.2 Gbps, respectively, and a rate of up to
1.775 Gbps for the device.
1 x GE uplink electrical port + 1 x GE downlink electrical port.
International 86 mm x 86 mm size: easy AP installation on an exposed or embedded junction box (86 mm x 86 mm) with a minimum
depth of 35 mm.
Ultra-thin panel: 8 mm, slotting seamlessly into the power socket.
Built-in smart antenna: automatically adjusts the coverage direction and signal strength based on the intelligent switchover algorithm.
Such capability enables the AP to flexibly adapt to the application environment changes, providing accurate and stable coverage as
STAs move. Users can enjoy full signal strength when moving around in the coverage space without any network disconnection or
interruption
